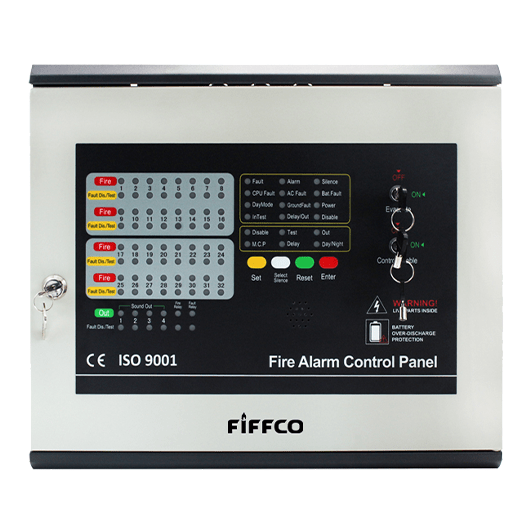

Conventional Fire Alarm Control Panel

Model : FD83-32

Description

The fire alarm control panel is an important part of the fire alarm system. It is mainly used to receive, display and transmit fire alarm signals, and has the function of issuing control signals. The main functions of the fire alarm control panel are system power supplying, fire alarm signal receiving, and equipment linkage.

Features

  • Main supply 110VAC/220VAC(-15%, +10%)
  • Battery type: 2x12V 1.3AH
  • Max number of devices per Zones: 20pcs
  • Auxiliary output: 18~28VDC(24VDC typical)
  • Sounder output (Bells): 2x0.3A maximum
  • Zone alarm current: 8~20mA
  • Fire/Fault Relay Capacity: 1A@30VDC maximum
  • Operating Temperature: -10°C - 50°C
  • Opening humidity: ≤95%RH(No Condensation)
  • Dimension: L310 x W93.5 x H245mm
